Winder Ropes

Made to your requirements

Virtually every Haggie rope installed on a winder is selected from an available design but is custom manufactured to the unique requirements of that winder.

Here are some of the important criteria when selecting or designing a rope for a given shaft installation.

Type of winder and intended duty
Shaft type – vertical or incline
Depth of wind
Conveyance guide system
Mass of conveyance plus mass of payload
Sheave and drum dimensions
Headgear and deflection sheave diameters
Fleet angles
Support rollers dimensions (incline shafts)
Propensity for rope oscillation – position of winder in relation to shaft
Drum type and coiling method
Required statutory factors of safety
Required breaking force
Installation and maintenance requirements
Environmental conditions – corrosive or non-corrosive
Acceleration and deceleration speed
Static and dynamic load range (Friction winders)
Drum tread material (Friction winders)

As there are often compromises needed in the design criteria, Haggie Reid engineers should be consulted before making a winder rope selection.

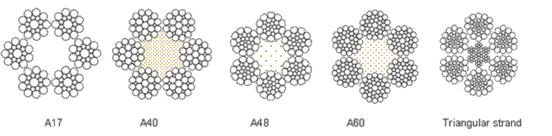

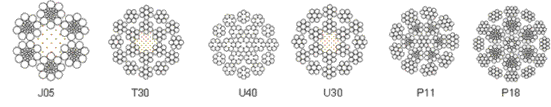

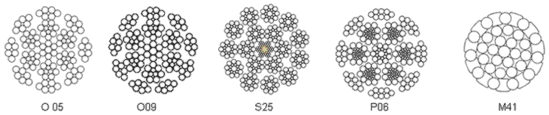

Typical cross sections of Haggie winder rope product range

Typical rope winder applications and recommended Haggie rope constructions

FC	=	Fibre Core	LL	=	Lang’s Lay
OL	=	Ordinary Lay	T	=	Triangular strand
N/S	=	Non spin or rotation resistant rope	C	=	Compacted strand
WMC	=	Wire Main Core	UHP	=	Ultra high performance grade

WINDER APPLICATION	ROPE CODE	ROPE CONSTRUCTION
Small drum winder operating in vertical shaft at less than 2.5m/sec with fixed guides	A17 K05	6×19(9/9/1)/FC LL 6×13(7/6T)/FC LL
Small drum winder operating in vertical shaft with rope guides	T30 U40	18 strand N/S LL 12x7C(6/1)6×7(6/1)/F 18 strand N/S C OL 12x7C(6/1)6x7C(6/1)/ WMC UHP
Large drum winder operating in an incline shaft	J	Compound triangular strand LL with largest practical outer wire sizes
Large drum winder operating in vertical shaft with fixed guides	J	Compound triangular strand LL with outer wires of typically 3.2mm in diameter
Large drum winder operating in vertical shaft with rope guides	P11 P18	15 strand “Fishback” N/S 9×10(8/2)/6×14(8/6T)/WMC 18 Strand “Fishback” N/S 12/10(8/2)/6×29(11/12/6T)
Blair Multi Rope Winder	J	Compound triangular strand LL rope
Koepe Friction winder to depth 500m	A40 A48 A60 P11	6×25(12/6F)/F OL 6x26C(10/5+5/5/1)/F UHP 6×36(14/7+7/7/1)/F OL 15 strand “Fishback” N/S 9×10(8/2)/6×14(8/6T)/WMC
Koepe Friction winder operating at depth range 500m to 1000m	U30 U40 P11	18 strand N/S OL (12×7(6/1)/6×7(6/1)/FC 18 strand N/S 12x7C(6/1)/6x7C9^/1)/WMC UHP 15 strand “Fishback” N/S 9×10(8/2)/6×14(8/6T)/WMC
Koepe Friction winder operating at depth range 1000m to 2000m	P18 V68 P11	18 strand “Fishback” N/S 12×10(8/2)/6×29(11/12/6) WMC 34 LR UHP16x19(9/9/1)/6x19C(9/9/1)+6x19C(9/9/1)/6x19C(9/9/1)/WMC UHP 15 strand “Fishback” N/S 9×10(8/2)/6×14(8/6T)/WMC
Tail or Balance Rope	S25 P06	17 strand N/S 11×19(9/9/1)/6×19(9/9/1)/6×7(6/1)/F 14 strand N/S 8×8/6×27(9/12/6T)WMC
Sinking stage winder	O05 O09 P11 P18	14 strand N/S 8×6/^x10(7/3T)/WMC 15 strand N/S 9×6/6×10(7/3T)/WMC 15 strand “Fishback” N/S 9×10(8/2)/6×14(8/6T)/WMC 18 strand “Fishback” N/S 12×10(8/2)/6×29(11/12/6) WMC (Rope mass 100t+)
Kibble wider for short winding distance and rope diameter less than 42mm	O09	15 strand N/S 9×6/6×10(7/3T)/WMC
Kibble wider for deep winding distance and rope diameter greater than 42mm	O10 P18	15 strand N/S 9×6/6×10(7/3T)/FC 18 Strand “Fishback” N/S 12/10(8/2)/6×29(11/12/6T)
Guide Ropes	M41	Half Locked 1×41(11+11/12/6/1)
